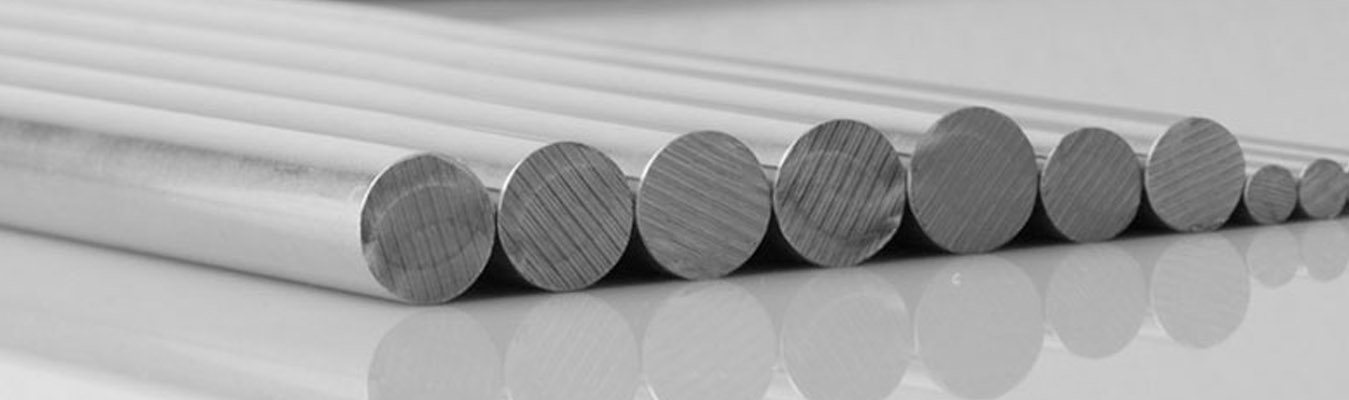

Stainless Steel Precision Bars
Applications
Piston Rods, Pump Shafts, Boat Shafts, Cylinder Shafts, Precision Machined Parts, Automotive Components & Others.
Superior Surface Finish, Diameter Tolerance & Straightness is achieved by additional processes, such as Straightening, Roller Burnishing and Centreless Grinding. Precision Bars are 100% inspected for diameter tolerance, out of roundness, surface roughness & straightness by specially designed instruments & gauges. Ultrasonic Inspection is done to ensure bars are free from internal defects. Bars are packed in strong plywood boxes with each bar protected with distance rings to avoid scratches.
| Specification | Cold Drawn, Centreless Ground & Polished | Peeled, Centreless Ground & Polished |
|---|---|---|
| Grades | 303, 304, 304L, 316, 316L, 410, 416, 420, 430F, 431, 630 (17-4 PH) & others | |
| Diameter (Size) | 6mm to 25mm (1/4” to 1”) | 25mm to 85mm (1” to 3-1/4”) |
| Surface Finish |
Upto RMS 12 max. Upto Ra 0.2 max. |
As Processed |
| Diameter Tolerance |
h7, h8, f7, f8 Half of ASTM A484 |
h7, h8, f7, f8 Half of ASTM A484 |
| Straightness | 0.5 mm per meter TIR (0.0015 inch per foot) | |
| Out of Roundness | Half of Diameter Tolerance | Half of Diameter Tolerance |
| Length | 3 up to 6.5 meter (12 up to 21 feet) | 3 up to 7 meter (12 up to 22 feet) |
| Length Tolerance |
-0/+50mm or +20mm or +10mm -0/+2” or +1” or +1/2” |
-0/+50mm or +20mm or +10mm -0/+2” or +1” or +1/2” |
| Heat Treatment | Annealed / Quench & Tempered | Annealed / Quench & Tempered |
